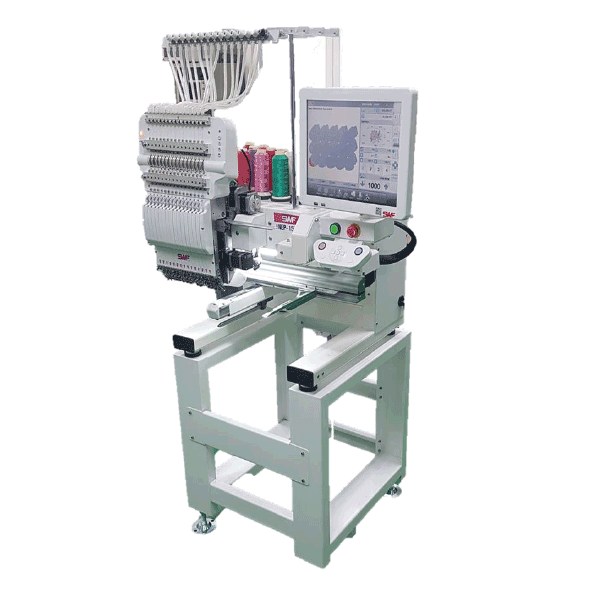

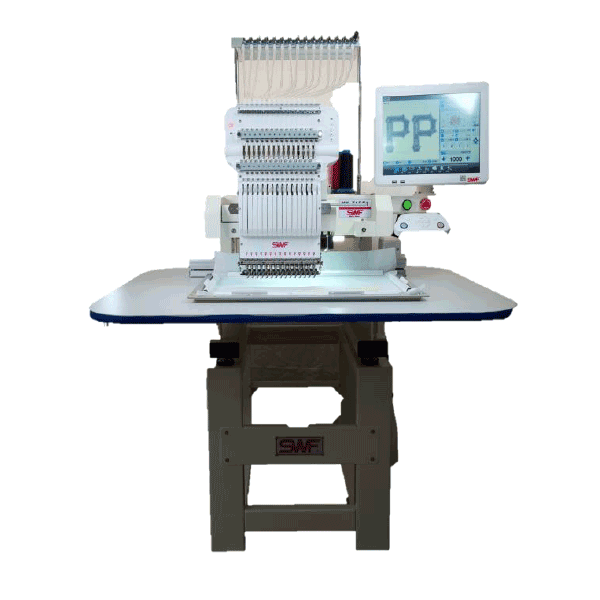

KX-T1501C Single Head SWF Embroidery Machine
Looking for an embroidery machine with flexible production technology? Then the new KX Series machines from SWF are the machines for you!
The KX-T1501 single head machine is the first machine in this new series.
Advanced features:

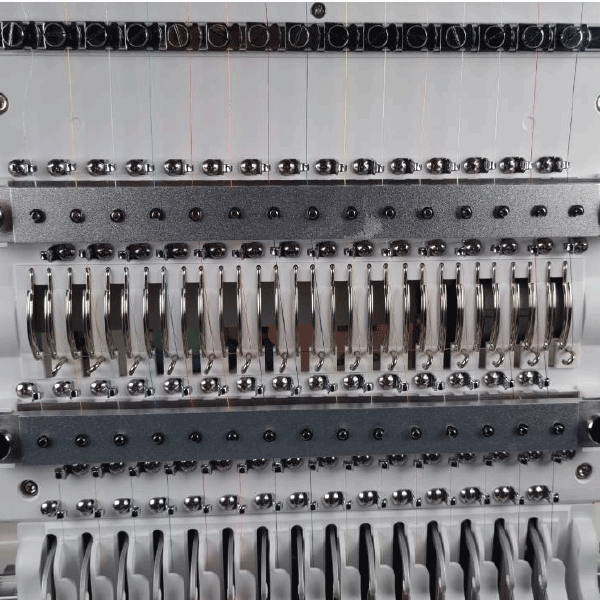

- Smart Tension System (S.T.S): automatically adjusts the optimum tension of the needle thread. S.T.S allows production of consistently higher quality embroidery and reduces productivity lost in manual adjustment of thread tensions. Less training required for new operators. Constant quality embroidery work regardless of the operator skill. with the need for less operator involvement.
- The new Smart Action Presser foot (S.A.P) adjusts the height presser foot automatically, ensuring the best quality embroidery, regardless of the thickness of the fabric being embroidered. This Increased stitch quality on large and small stitches for thick or thin fabrics.

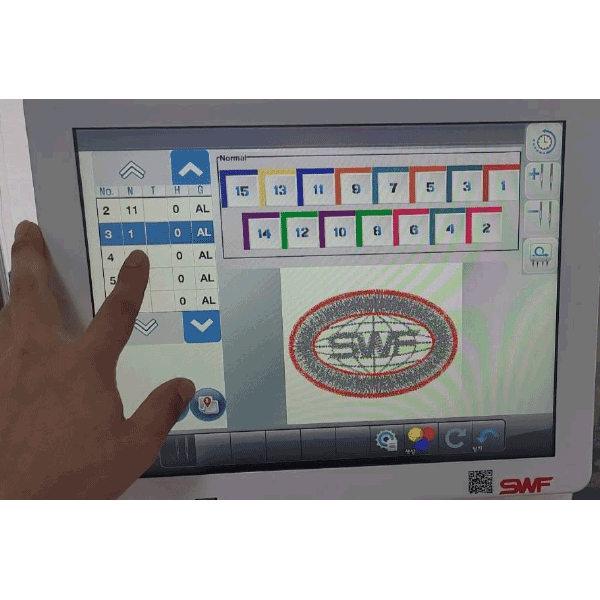

- The new SWF 15-inch touch screen Operation Panel allows the user to easily view settings and embroidery status. And it offers many other advanced features in an intuitive and easy to use interface, improving the user experience.
Additional SWF/KX-T1501 and KX Series features are:
- Smaller Cylinder Arm: Redesign of the cylinder arm improves stitch quality and reduces thread & needle breakages on caps. It will allow you to embroider inside smaller pockets.
- Easy Cap System: The New Cap Frame is lighter and stronger. And by using thumb screws, switching between cap frame and tubular frames is quick and easy.

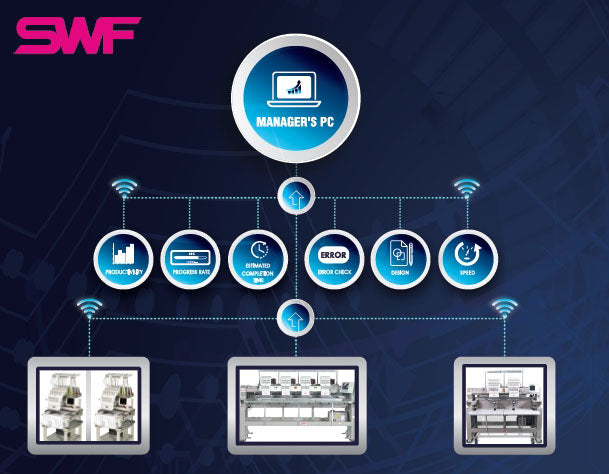

- SWNS: Optimize machine and operator efficiencies with machine management software. Monitor activity remotely from PC.
SWF embroidery machine's latest technology features all-NEW Wi-Fi capability (transfer designs to your machine wirelessly), along with a large 15″ LCD Touchscreen Control Panel and increased running speed to produce designs flawlessly up to 1,200 stitches per minute.
Included in this package is SWF's newly redesigned Easy Cap System. This 270deg wide cap frame. It is 17% lighter than the previous cap system. This system is as simple to use as changing a hat embroidery machine to a garment embroidery machine as changing a hoop. It's that easy!
It perfectly holds a large range of baseball caps for seamless high speed production. This is a great option for business owners with small shops and workwear/uniform business where customers' orders can comprise a mix of shirts, jackets and baseball caps.
This is the best choice for someone starting a new business or a commercial business needing a single head embroidery machine for small runs, sampling and 1 offs, so as not to tie up larger multi head embroidery machines.
Effortlessly Embroiders: flat goods, tubular hoops, caps, hats and almost anything you can get under the foot!
We include 2 frames per size (Garment or Cap) so you can reduce your down time by having the next garment ready to go into the machine while one is being embroidered. Less downtime means more income for you.
These embroidery machines are packed with features
- Compact size fits anywhere - 1000mm length x 800mm width x 1750mm high (Stand included).
- This multi-needle machine has 15 Needles/colour embroidery threads to ensure you always have your main colours available
- Maximum Speed of 1200 stitches per minute to get you through your orders FAST.
- The Largest Maximum Sewing Area (embroidery field) that's big enough for the largest designs of 520mm wide x 360mm high
- See your design before it sews with the large 15-inch LCD Screen. Edit your design, Rotate your design and Reduce or enlarge right from the LCD Screen
- These machines run from a standard household power point. No special wiring is needed. This makes this the best embroidery machine for the home business
- 14 garment holding frames included (2 of each hoop size) 90mm round, 120mm round, 150mm round, 180mm round, 460mm x 300mm, 410mm x 270mm, 300mm x 300mm
- Standard 270deg Wide Baseball Cap Frame System. (360mm wide x 75mm high) (1 x Cap Loading Device, 2 x Cap Holding Frames (Hat hoops) and 1 x Cap Frame Driver Base) You will wonder why some other businesses get others to embroider their hats and caps
- Memory capacity of up to 40,000,000 stitches ( that’s approx. 5000 front chest embroidery designs)
- Wi-Fi Compatible.
- Low maintenance. Heavy duty
- Quick to learn and easy to use.
- Automatic thread break sensors and colour changing.
- LED lighting of the sewing area
- Laser pointer for easy garment alignment
- Quiet operation
- Load designs via USB port (2) or SWNS Network Software
- Up to 7 years warranty*
- Onsite Training to get you started
- Life Time Free phone support
- SWF embroidery machines are manufactured in South Korea
